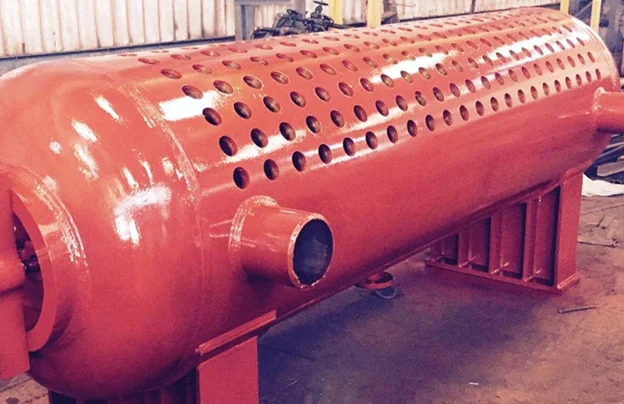

Nordstone is a premier engineering pioneer with over 20 years of experience specializing in the design, custom fabrication, and manufacturing of high-performance industrial mud drums, steam drums, and critical boiler pressure vessels in the UAE.
As a major heavy-industrial manufacturing hub, the UAE demands thermal process equipment that can withstand volatile thermal cycles, extreme pressures, and corrosive marine or industrial environments. Engineered in our state-of-the-art facility using advanced welding automation and rigorous non-destructive testing (NDT), Nordstone mud drums serve as essential sedimentation reservoirs for water-tube boiler systems across the Oil & Gas, petrochemical, marine, and power generation sectors.
By collecting precipitating scale, sludge, and heavy dissolved solids at the lowest point of the boiler circulation loop, our mud drums prevent critical scaling within the high-heat water tubes, directly optimizing thermal efficiency and maximizing plant operational lifespans. Backed by mandatory API, ASME (U, S, PP stamps), and ISO certifications, every custom vessel we manufacture is optimized for long-term mechanical reliability, structural integrity, and uncompromised industrial safety across the Middle East.
Frequently Asked Questions
1. What is a mud drum in a boiler system, and what is its primary function?
A mud drum (also referred to as a lower drum) is a bottom-mounted pressure vessel located at the lowest point of a water-tube boiler’s circulation loop. Its primary function is to act as a stagnant settling reservoir for heavy impurities, precipitated mineral scale, sludge, and suspended sediment carried by the boiler feedwater. By collecting these solids away from the high-temperature radiant heat zones, it ensures clean water recirculates back into the steam generation tubes, preventing tube blockages and localized overheating.
2. Why is Nordstone considered a leading mud drum manufacturer in the UAE?
With over 20 years of heavy fabrication experience in the region, Nordstone delivers highly customized, certified heavy-wall pressure vessels engineered specifically for deep-desert and coastal industrial facilities. Our manufacturing workflow integrates advanced metallurgy, automated submerged arc welding (SAW), and strict adherence to international standards. This guarantees that our mud drums can withstand the intense operational pressures and high thermal gradients typical of the UAE’s heavy industries.
3. What international design codes and certifications do Nordstone mud drums comply with?
Every boiler and steam pressure vessel manufactured by Nordstone is designed and stamped in strict compliance with globally recognized standards. This includes:
- ASME Section I: Rules for Construction of Power Boilers
- ASME Section VIII (Div 1 & 2): Design rules for high-pressure vessels
- ISO 9001, ISO 14001, & ISO 45001: Standardized quality, environmental, and safety management frameworks
- API Specifications: For critical integration into refinery and petrochemical process skids
4. How does a mud drum differ from a steam drum?
While both are fundamental elements of a water-tube boiler, they occupy opposite ends of the system:
- Steam Drum: Positioned at the top of the boiler loop, it separates generated steam from liquid water and distributes feed water down into the system.
- Mud Drum: Positioned at the very bottom, it receives cold, dense water from the downcomers, collects settling sludge, and feeds the riser tubes where steam generation occurs.
5. What materials are used by Nordstone to manufacture boiler pressure vessels?
To counteract high pressures, elevated temperatures, and corrosive conditions, Nordstone uses premium-grade, certified materials. These include heavy-gauge carbon steels optimized for pressure vessels (such as SA-516 Grade 70) as well as advanced low-alloy steels (like SA-387 Chrome-Moly grades) which provide excellent creep resistance and structural integrity under prolonged thermal exposure.
6. Why is scale and mud accumulation dangerous to industrial water-tube boilers?
If dissolved solids and mineral precipitates are left to circulate freely, they deposit onto the internal surfaces of the high-heat riser tubes, forming an insulating layer of scale. Because scale restricts efficient heat transfer, the tube metal is forced to absorb excess heat to boil the water within. This leads to localized overheating, structural sagging, thermal fatigue, and eventually catastrophic tube ruptures or blowouts.
7. How are collected impurities removed from a Nordstone mud drum?
Impurities are evacuated through a dedicated process known as “bottom blowdown.” Periodically, a high-pressure blowdown valve located at the base of the mud drum is opened. The internal operating pressure of the boiler forces the accumulated sludge, mud, and highly concentrated water out of the drum and into a safely vented blowdown tank, cleansing the lower circulation loop without disrupting boiler uptime.
8. What non-destructive testing (NDT) methods does Nordstone apply during fabrication?
To guarantee 100% weld joint integrity and safety compliance under high-pressure conditions, our in-house quality control team subjects every mud drum to comprehensive NDT protocols, including:
- Radiographic Testing (RT): X-ray inspection of all primary longitudinal and circumferential butt welds.
- Ultrasonic Testing (UT): To detect sub-surface flaws or volumetric defects in thick steel plates.
- Magnetic Particle Testing (MT) / Dye Penetrant Testing (PT): For uncovering microscopic surface cracks around nozzle attachments.
- Hydrostatic Pressure Testing: Final pressure testing exceeding design parameters to verify absolute structural reliability.
9. Can Nordstone customize mud drums for existing plant retrofits in the UAE?
Yes. Our expert engineering team specializes in custom brownfield retrofits and exact replacement fabrications. We can match existing spatial constraints, nozzle orientations, support saddle configurations, and exact structural requirements of legacy boiler setups while upgrading the metallurgy and internal baffles to modern engineering standards.
10. How does the corrosive environment of the UAE affect mud drum design?
The coastal geographic conditions across the UAE expose industrial plants to high humidity and atmospheric salinity, accelerating external corrosion. Nordstone counters this by applying advanced, high-temperature external coatings and specialized marine-grade epoxies. Internally, we prioritize precise water chemistry accommodation, smooth geometric contours, and corrosion-resistant nozzle linings to mitigate oxygen pitting and erosion-corrosion.
11. What internal components are housed inside a Nordstone mud drum?
While less complex than steam drums, mud drums often feature internal feed-pipe extensions, internal blowdown piping (or perforated collector pipes spanning the length of the drum to ensure uniform sludge removal), and anti-vortex baffles that prevent sediment from being re-entrained back into the generating riser tubes during rapid load shifts.
12. What industries in the Middle East benefit most from your industrial boiler vessels?
Our heavy-duty steam and mud drums are engineered for critical applications within:
- Oil & Gas Refineries: For process steam and cracking units.
- Petrochemical & Chemical Plants: Powering large-scale chemical synthesis and distillation columns.
- Power Generation Facilities: Driving high-output thermal power generation loops.
- Marine & Offshore Platforms: Integrated into heavy vessel propulsion and utility steam networks.
13. How does Nordstone assure the exact thickness calculation for heavy-wall drums?
Using advanced Finite Element Analysis (FEA) software alongside classic ASME code calculations, our engineers precisely determine wall thickness. Factors evaluated include maximum allowable working pressure (MAWP), maximum design temperature, structural loads from connected piping, seismic ratings for the UAE, and designated corrosion allowances, ensuring the safety of the vessel throughout its 20+ year operating lifecycle.
14. What lead times can UAE clients expect for custom boiler vessel fabrication?
Lead times vary depending on the vessel’s geometric scale, wall thickness, and material availability (such as specialized alloy plates). However, because Nordstone operates a localized, state-of-the-art manufacturing facility in the region with an optimized global supply network, we offer some of the most competitive engineering, fabrication, testing, and delivery timelines in the UAE.
15. How can we initiate a request for quotation (RFQ) for a mud drum or steam vessel?
To consult with our engineering department, review technical specifications, or request an accurate quotation tailored to your plant’s operational requirements, you can submit your project parameters directly through our secure interface. Please visit our dedicated page to connect with an engineer: Contact Us.
